Facilities
Tarapur Works — built for the super-heavy
A manufacturing complex engineered around one problem: fabricating equipment too large for anyone else to move.
Manufacturing
Three dedicated fabrication bays
Light fabrication, machining and heavy fabrication run as parallel production lines — so a 110 m column never queues behind a tube bundle.
Bay A
Light Fabrication
22 m wide × 140 m long
Bay B
Machining
20 m wide × 140 m long
Bay C
Heavy Fabrication
27 m wide × 160 m long
Engineering Scale
Verified maximum parameters
What the works can fabricate as a single piece — and what site fabrication adds beyond it.
Shop-Fabricated Columns & Towers
- Maximum Diameter
- 6.8 m
- Maximum Length
- 110 m
- Single-Piece Weight
- 225 MT
- Shell Thickness
- 102 mm
Shop-Fabricated Pressure Vessels
- Maximum Diameter
- 6.5 m
- Maximum Length
- 35 m
- Single-Piece Weight
- 425 MT
- Shell Thickness
- 125 mm
Heat Exchangers — Executed
- Tube Sheet Thickness
- 430 mm
- Test Pressure
- 395 kg/cm²g
- Maximum Diameter
- 2,100 mm
- Number of Tubes
- 4,100

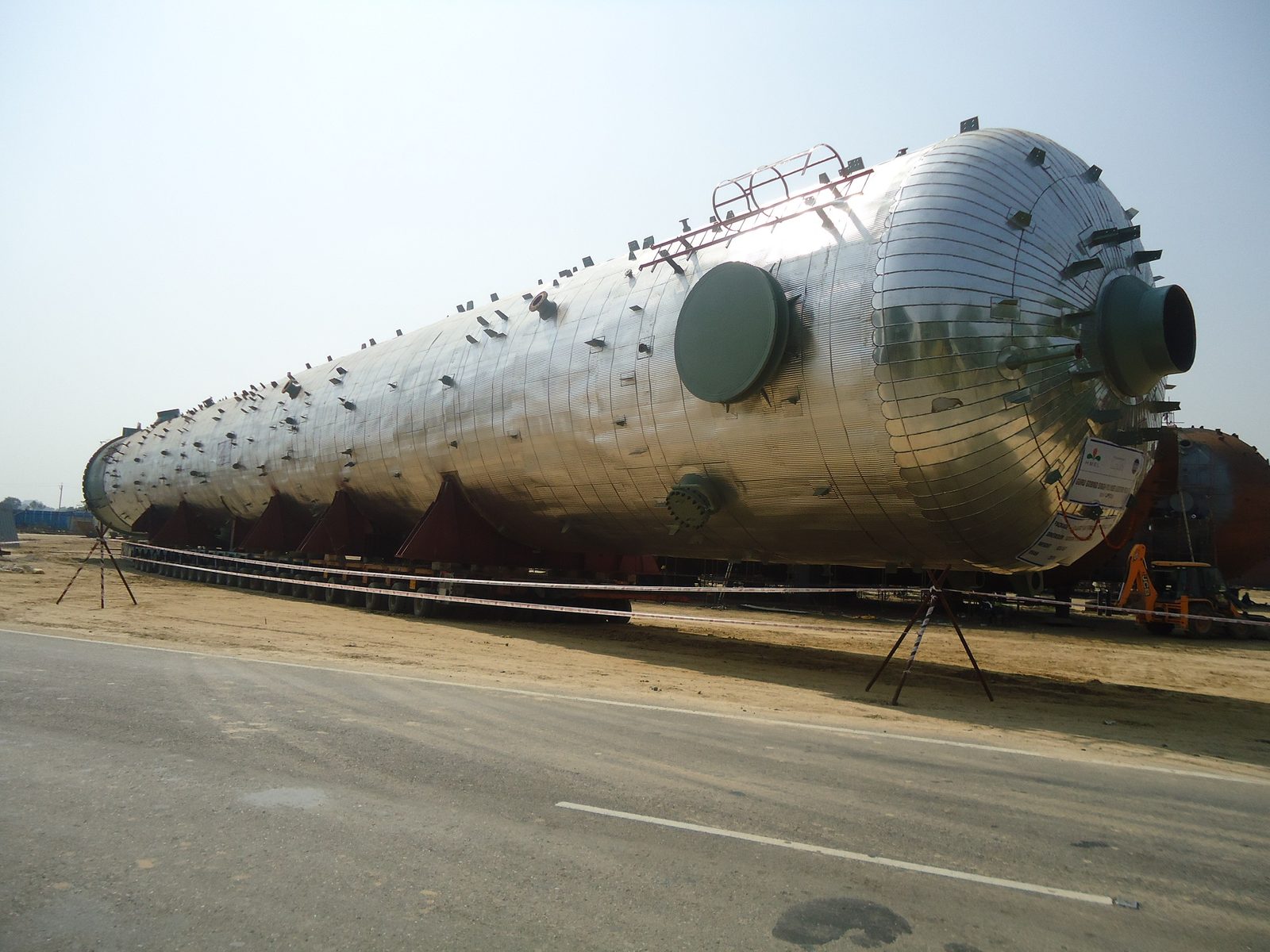

Site-Fabricated Super-Heavy — HMEL Bathinda
- Heaviest Single Column
- 2,230 MT
- Largest Internal Diameter
- 13 m
- Longest Tower
- 103 m
- Towers at One Complex
- 6 Nos.
- Bogie Hearth Furnace
- 6 m H × 6 m W × 12 m L
- Hydrostatic Testing
- Up to 500 kg/cm² g
- Impact Testing
- Down to −195 °C (NABL lab)
Transportation & Logistics
By road up to 250 MT. By water, beyond all limits.
The works has direct access to the Western Express Highway. For equipment that cannot move by road, our own jetty lies just 5 km from the manufacturing complex.

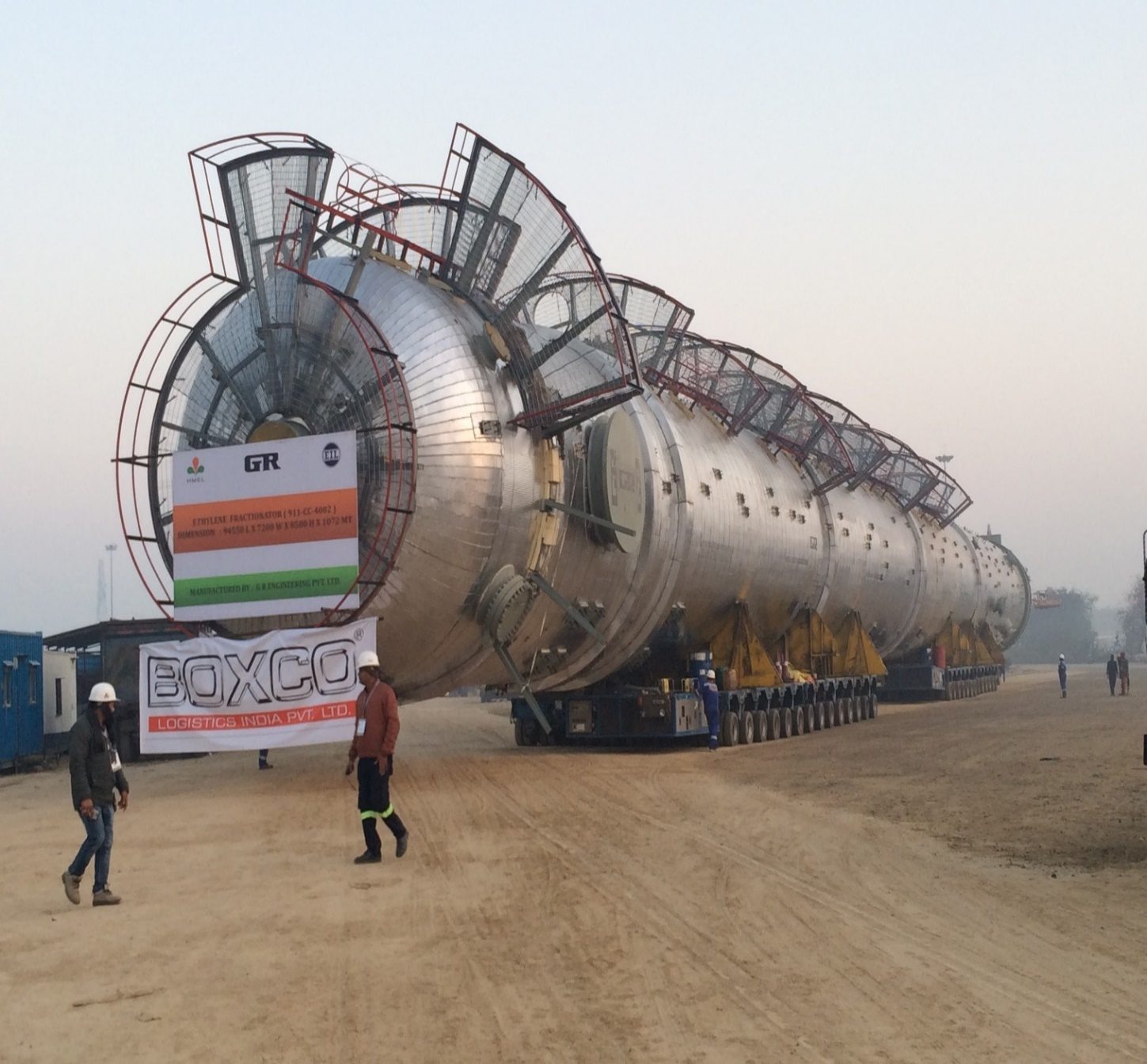

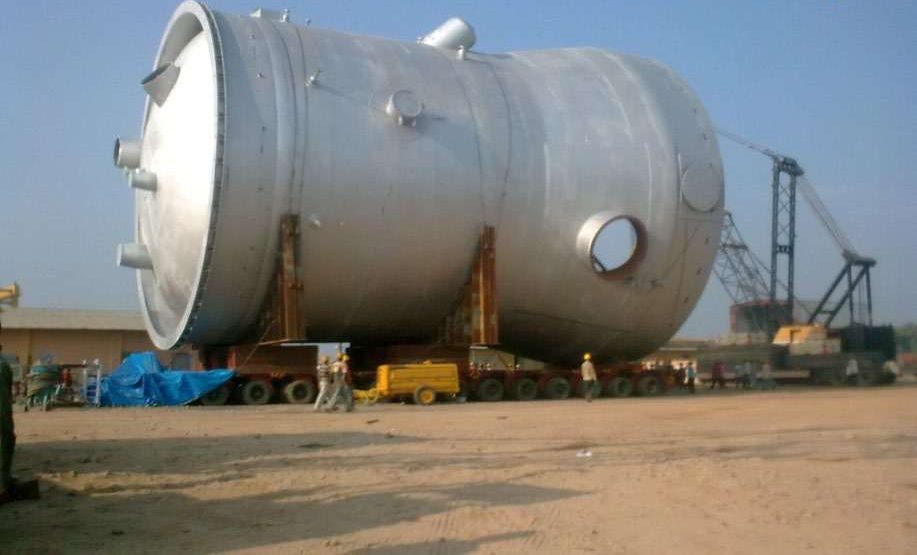

Road Movement
Direct access to the Western Express Highway; dimensions limited by route constraints such as flyovers, sign gantries and high-tension lines.
- Max Weight
- 250 MT
- Max OD
- 6,000 mm
- Max Length
- 48,000 mm

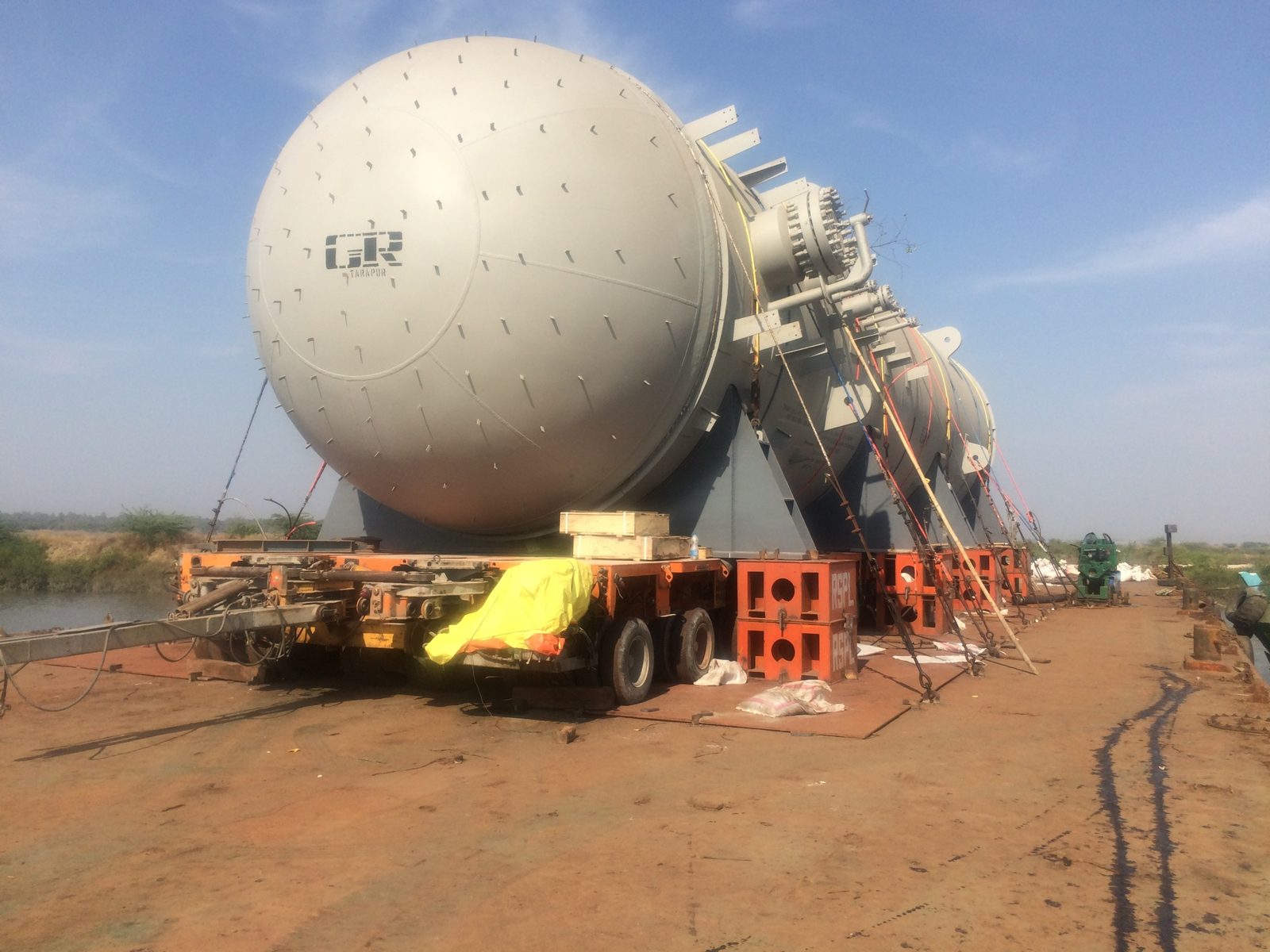

Own Jetty — 5 km
Oversized equipment rolls straight from the works to our captive jetty for waterway dispatch — no road ceiling on diameter or weight.
- Distance from Works
- 5 km
- Mode
- Barge load-out
Multi-Modal / RO-RO
Waterfront fabrication land in West Bengal enabled direct roll-on/roll-off delivery of mounded bullet sections from Kolkata to Mongla, Bangladesh.
- Waterfront Land
- West Bengal
- Operation
- Direct RO-RO
